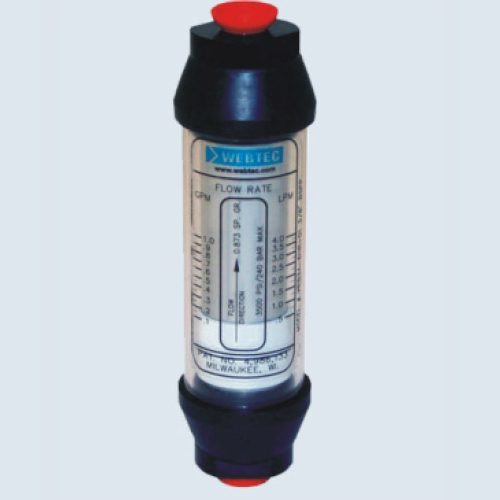

Flow indicator

About Flow indicator

Flow indicator is a device used to visually indicate the flow of fluid (liquid or gas) in a pipe or system. These are commonly used in various industries, including oil and gas, water treatment, chemical processing, and HVAC systems, to ensure that the system is functioning properly and to detect potential problems such as blockages or low flow conditions. They are widely used in hydraulic systems to monitor fluid flow, detect blockages, and ensure that pumps, valves, and other components are operating correctly. Flow indicator is a crucial component for monitoring the movement and flow of fluids within systems across various industries.

 Features:

• Built in Thermometer available
• Flow from 10- 180 lpm
• Pressure 350 Bar, 5000 psi
• Accuracy within 4% FSD

• Flow from 10- 180 lpm
• Presuure 350 Bar, 5000 psi
• Built in Thermometer available
• Accuracy within 4% FSD
• Pressure Gauge Port option
• Available in aluminium for oil, or brass for water

• Ambient temperature: -10 to 50C (14 to 122F)
• Fluid type: Hydraulic oils
• Fluid temperature: 20 to 80C (65 - 176F) continuous use. Intermittently (<10 minutes) up to 110C (230F)
• Accuracy Flow: 4% of full scale / Temperature: 2.5C (5F)
• Dimensions: 199 x 87 x 74mm (7-7/8 x 3-1/2 x 3)
• Weight: 3.2 kg (7 lbs)
• Construction material:
• Main block: Aluminium 2011T3
• Internal parts: Mainly brass
• Seals: Viton
